Closed extraction and purification system for small containers
The majority of the plant protection product is sold in small packs. By using these small containers arise for the user and the environment various possibilities contaminated with substances (for example, uncontrolled splashes in measuring or filling, contaminated sealing films or lids, rinse emptied containers by hand, etc.).

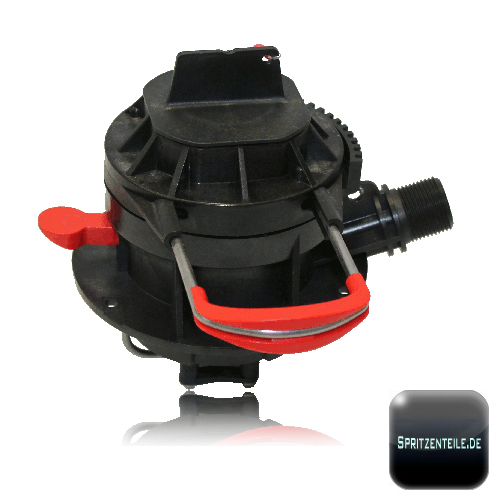

The Agrotop easy flow extraction system is the first closed and contamination-free system for liquid pesticides from sealed or open cans and small containers, which allows partial and complete withdrawals and completely cleans itself. With easyFlow You can also anticipated future high requirements of environmental protection and occupational safety match today.
The extraction and purification system consists of:
a tank adapter (incl. drilling template, gasket and screws)
a canister adapter (for 5- and 10-liter canister)

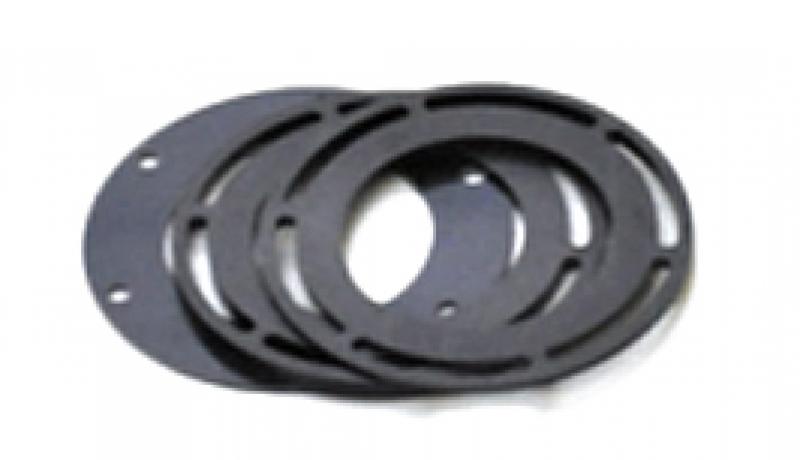

a wedge disc set on uneven surfaces (2 taper washers and 2 gaskets), optional
The tank adapter is mounted on the device tank or the induction hopper and then infected the Spülwasserzuleitung. On the pesticide containers the user screws on the canister adapter and sets it then reversed on the tank adapter that is locked by pulling a loop handle. Cans sealing films to be opened shortly before emptying in closed system and during removal held open. The clockwise rotation of the curved handle triggers the draining, with the withdrawal speed can be infinitely adjusted to the width of the opening travel. The closure of the system is done in the reverse direction. Completely emptied cans can be cleaned automatically then. If a part removal are merely rinsed the contact surfaces of the adapter without having to dilute the remaining amount of substances in the canister. The canister adapter then remains to the complete emptying of the undamaged package. With the Behälterspülfunktion the empty canister including sealing film can be washed in a closed system, and also in partial withdrawals only adapter surfaces.
The benefits and features compared with previous systems:
dripping and mess-free system absolute user and environmental safety
Partial withdrawals possible - then forcibly re-closing of the canister
unintentional opening of canisters is prevented by an automatic and forcibly re-close the canister before uncoupling
infinitely variable sampling rate - guaranteed accurate withdrawal of small quantities
completely emptied containers are then cleaned automatically and quickly
no cleaning of measuring and decanting vessels necessary
suitably adaptable for all devices tanks, washing-in locks and as a retrofit kit
We offer the easy flow extraction and purging system in two sets in, with optional wedge disc set. Please select.
