Arag WOLF Paddle flow meter with brass flange - 40 bar

WOLF flow meter from manufacturer ARAG, male threaded brass flange

• Hi-precision and good price/performance ratio
• Male threaded brass flange for direct connection to control units
• Operating status LED
• Sapphire paddle pin to minimize rotational friction and maximize sensitivity and accuracy
• Paddle assembly equipped with ‘TWIST’ system for either cleaning or replacing operations without the need of any tools
• Fully sealed and watertight electronic sensor
• Rates from 5 to 200 l/min at max. 40 bar

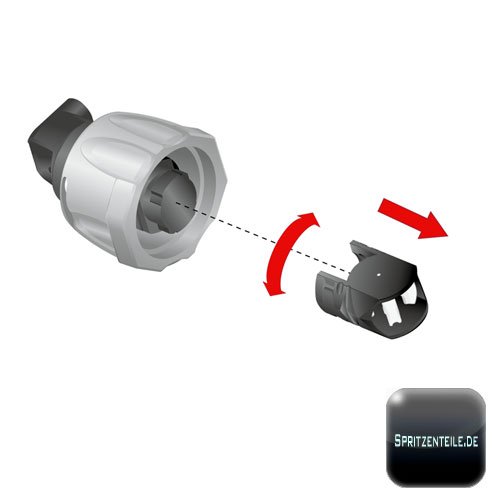

The »TWIST« system is the peculiar feature of WOLF flow meters. ARAG R&D deparment has designed a quick-release system that does not require any tool and allows paddle cleaning, which is important considering that paddle usually collects any sediments of the chemicals contained in the fluids used for agricultural purposes.

Please note the flow direction of the flow meter when installed in the control unit ! Please select the measurement range and connection size !
