The Series 4668 of Arag has been revised with a number of improvements. This series is very reliable and economical and comes with a compact design contrary to the requirements of reduced dimensions. The switch boxes are connected via a convenient bayonet mounting system. They are available in numerous versions.
Main Features
Models with 4 output sectors
Control capability of the main switching valve
Adjustment of the pressure values
New heavy-duty switch protected with rubber caps

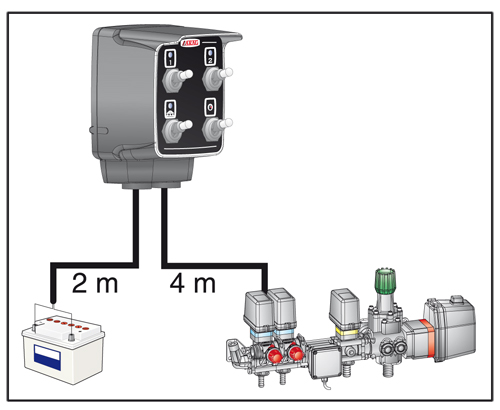

4 m connecting cable to the valve and 2 m cable to the battery
Supply voltage: 12 Vdc
LED display with strong luminosity
Self-resetting fuse main
Waterproof
Operation:
M (groups with outlet valves of the series 463 / new series 863) or
P (groups with main switching valves of the series 464 and 471 / new series 864 and 871)
Colour mapping (see table):
YELLOW for engine valves
ORANGE for solenoid (magnetic) valves
