The control box series 4669 for the control of spraying equipment has been specifically developed for the new control valves series 863 up to 7 boom sections. The box has special functional properties for a reliable and convenient handling. The heavy-duty switch ensures high wear resistance. The modular and configurable design makes this control box for universal unity and allows use in tight areas through practical fastening device with bayonet lock.
Features:
- Model for the control of up to 7 sections
- Pressure adjustment
- Connection for foam marker at 3 and 5 sections possible
- Connection cable for boom sections with connector and slide coupling
- Supply cable 2 m length and boom section 0.5 m cable length, rotated and positioned as desired
- Additional cable for connection of partial widths with 3 or 5 meters optional
- Heavy-duty switch with rubber cap protection
- Main fuse with self reset
- Equipment is waterproof

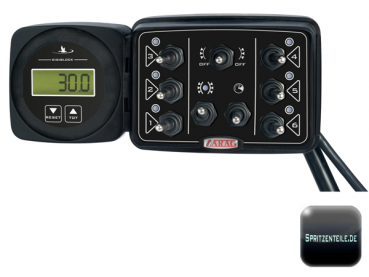

- Connection of an external pressure gauge or a DIGIBLOCK digital display at any postion of the control box with the appropriate kit and fork connection
- LED display with high brightness
- Supply voltage 12 Vdc
Not compatible with section electric valves 2-wire gearmotors series 463 - 473 !
The scope of delivery includes:
- Control box with power supply cable 2 m and cable to the fitting 0.5 m

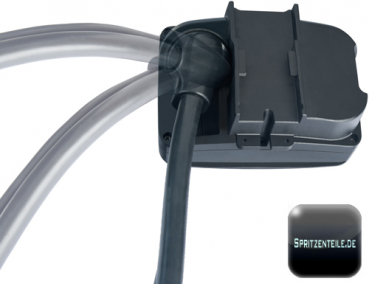

- Bayonet bracket
- Operating manual
You will also need cables to connect the control unit. Please select the desired cable length in combination with the number of boom sections and connector foam markers.
Available lengths:
3 meters for 3 boom sections - optional with foam marker connector
5 meters for 3 boom sections - optional with foam marker connector
3 meters for 5 boom sections - optional with foam marker connector
5 meters for 5 boom sections - optional with foam marker connector
3 meters for 7 boom sections
5 meters for 7 boom sections
Optional accessories can be ordered separately:
- Control units
- Digital pressure display DIGIBLOCK kit for control box series 4668 - 4669
- Foam markers
- Extension cable for control box and control units
