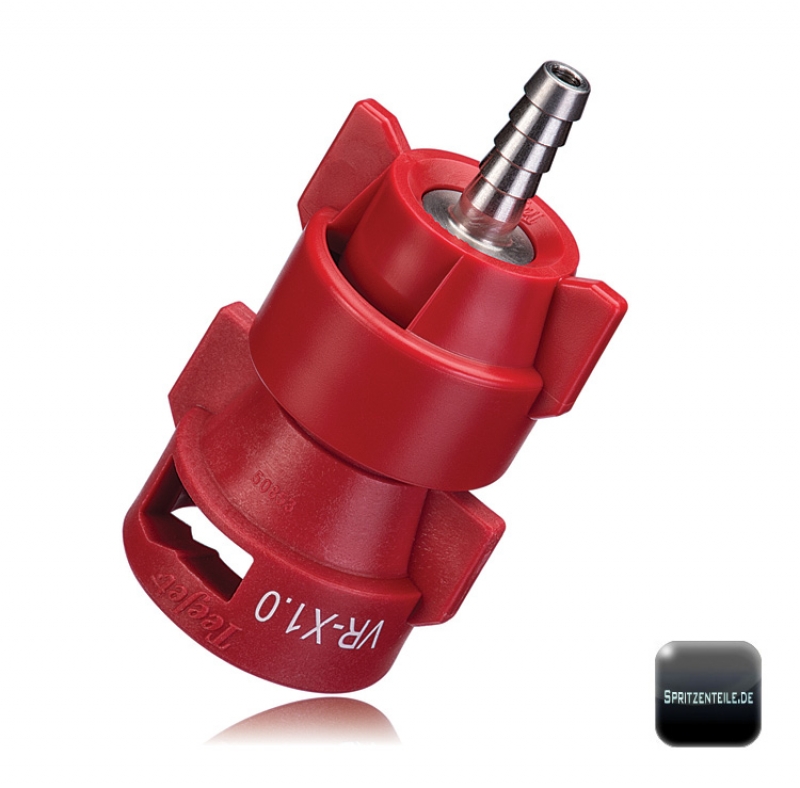

TeeJet QJ-VR hose outlet with integrated dosing and bayonet cap
With the QJ-VR product line for liquid fertilization, a high variability of the volume flow in the usual pressure range is achieved by means of a variable diameter elastomer metering disc. This means that it can be driven powerfully over larger speed and application ranges (l / ha) without changing the blades or nozzles.
Characteristics:
Ideal for sowing and / or fertilizing in row crops as well as for soil injection fertilization
QJ-VR components made of ACETAL with high mechanical and chemical resistance
Stainless steel hose nozzles with high mechanical and chemical durability
Hose nozzles suitable for hose ø (inner diameter) ¼ ", 5/16" or ⅜ "
Simple and reliable – variable in diameter – EPDM elastomer metering orifice
Pressure range 0.7 to 7 bar (10 to 100 PSI)
