In conventional nozzles can adjust the flow rate only in a relatively narrow range. Ground speed and application rate changes are thus severely limited.
The new Turbo Drop ® VR ( variable rate = variable application rate ) has a much larger flow area than conventional plant protection or liquid fertilizer nozzles. It varies the flow cross-section continuously , thus allowing changes in the speed and application rate approximately equivalent to four conventional nozzle sizes.
Based on the proven Turbo Drop ® injector nozzle the TD VR has an integrated bypass valve that varies continuously in the lower pressure range the opening cross section. Here, the discharge amount is increased even at low pressure, pump and lines are relieved, reduce the power circuit and frequently avoided nozzle change. An investment with the benefit of all who want to change the application rate or more often seek the best possible adaptation to the size of the driving speed range without changing nozzles.

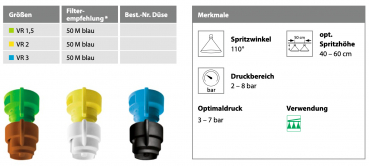

This new injector-fan nozzle by the manufacturer Agrotop is available with
spray angle 110°
standard bayonet cap and seal
pressure range between 1 – 8 bar.
equipped with nozzle filter 50 meshes
Very high range, good inventory penetration and maximum wear resistance and precision are the advantages of this nozzle. Please select the desired nozzle size and spray angle.
