Air induction flat spray nozzle from the manufacturer Spraying Systems with an orifice made of stainless steel. The TeeJet-AI is very driftage reducing with a pressure between 2 and 4 bar.
The optimal spraying pressure is between 4 and 8 bar.
The nozzle is color-coded and the size 05 is depending on the pressure registered as driftage reducing up to 90 / 75 / 50 %.
The size 025 to 04 are registered as driftage reducing with 75 / 50 %.
The AI nozzle has a spraying angle of 80° and a keywhide of 11 mm.
The optimal spraying height over the target is 50 cm.
There are very fine drops at a high pressure which lets you administer the contact agent very good.
Automatic spray alignment with 25598-*-NYR Quick TeeJet® cap and gasket.

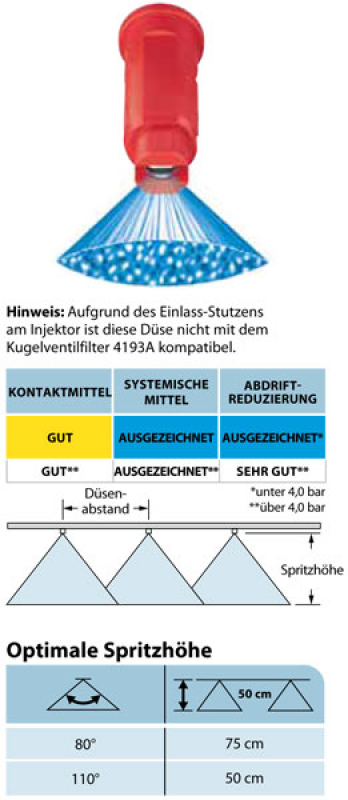

The yield table could be found in the image.
