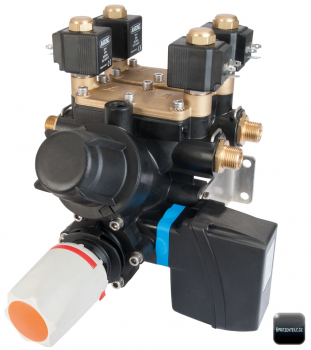

The control units with solenoid valves and electrical by-pass valve are designed to be connected with computerized electrical systems for spraying and row spraying. These units, very compact and made of highly resistant materials, consist either of 2 / 4 or 6 section valves.
- Very compact
- Parts in fibreglass reinforced Nylon®, brass and stainless steel
- Teflon® seals
- Normally closed 12 Vdc solenoid valves
- Two solenoid valves into a single modular body
- Brass inlet flange with ¾" threaded external connection
- Brass outlet connectors with ½" threaded external fork connection compatible with all connections of valves series 863
- Max. pressure 40 bar
- Max. flow rate 150 l/min.
Control unit is supplied with:
- manual control valve series 475
- self-cleaning filter, 50 mesh
- electric ON/ OFF by-pass valve
- ¼" internal thread pressure gauge connection
- 2, 4, or 6 sections
Please choose the numbers of section valves. Fittings in brass see
here !
The control unit, with 2 ways and drain valve, is compatible with the AR46685236 control box. The control unit, with 4 or 6 ways and drain valve, is compatible with the AR46698461 (4-way) and AR46698661 (6-way) control boxes. See accessories.
