Piston diaphragm pump AR460BP
Piston diaphragm pump AR460BP
Piston diaphragm pump AR460BP

Piston diaphragm pump AR460BP

Product No.:
AG16397
Shipping time:
5-8 days, if in stock 5-8 days, if in stock (abroad may vary)
Weight:
79 kg per piece
Our standard price 5.574,82 EUR
Your price from 5.017,34 EUR
Shop discount 10%

incl. 19% tax excl. Shipping costs

Add to wish list
Ask about product
Description

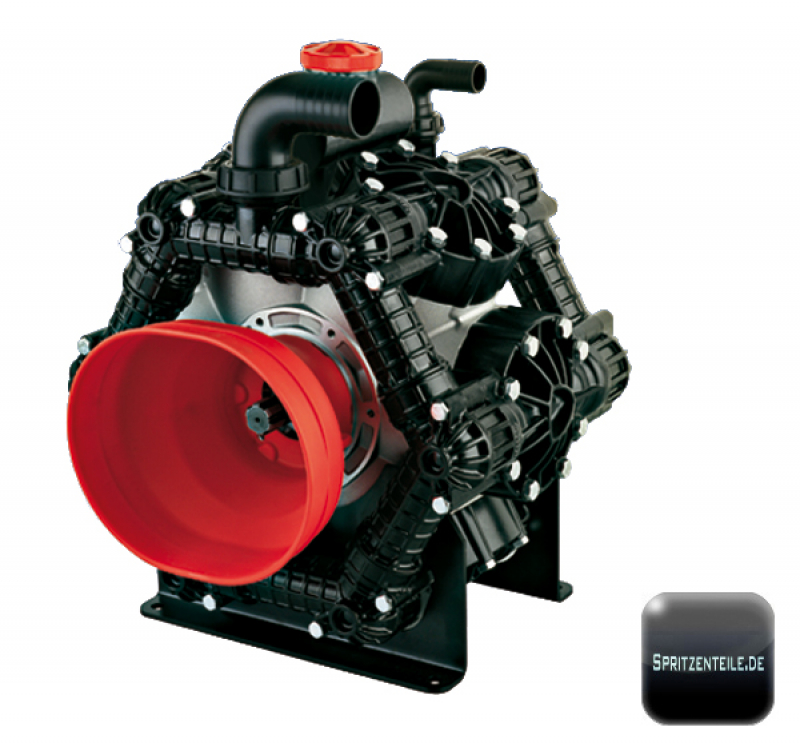

The piston diaphragm pump AR 460 BP is equipped with 6 membranes and identical to the AR 410 BP, but provides even higher capacity of up to 450 l / min. Manufactured by Annovi Reverberi pumps in Italy, in the typical construction, running in the drive including the piston in an oil bath. The membranes separate the components which come into contact with liquid, the components of the mechanism. This type of pump are used for all applications, where large production capacities are required.

Special features include:
  • Insensitivity, through the plastic coating on the liquid-carrying metal parts, can be used for agricultural use in field crops with corrosive liquids, this pump
  • Suction behavior
  • Dry run capability and
  • lower maintenance and repair costs
  • CE-compliant user and environmental protection is ensured with an overpressure safety valve and safety devices on the shaft (shaft protection is included).
The pump available with:
  • double-sided PTO through drive 1 3/8"
  • Mounting kit for hydraulic motor »IDM« – oil shaft ø 32 mm
Specifications:
  • 6 membranes BlueFlex equipment
  • max. 450 l / min flow rate
  • max. pressure up to 20 bar
  • 17 kW output
  • max. 550 U / min
  • Inlet connection 3" with spout ø 75 mm
  • Outlet connection 1½" with spout ø 40 mm
  • Weight 78.5 kg
Here you find suitable hose nozzles with union nut.
Product-Liability

ANNOVI REVERBERI SPA

+39 059 414411

infoar@annovireverberi.it

Via M.L. King, 3
41122 Modena, Italy
Documents
Data sheet AR Pump 460bp  (1.06 MB)
Spare Part List Pump AR460BP  (2.38 MB)
