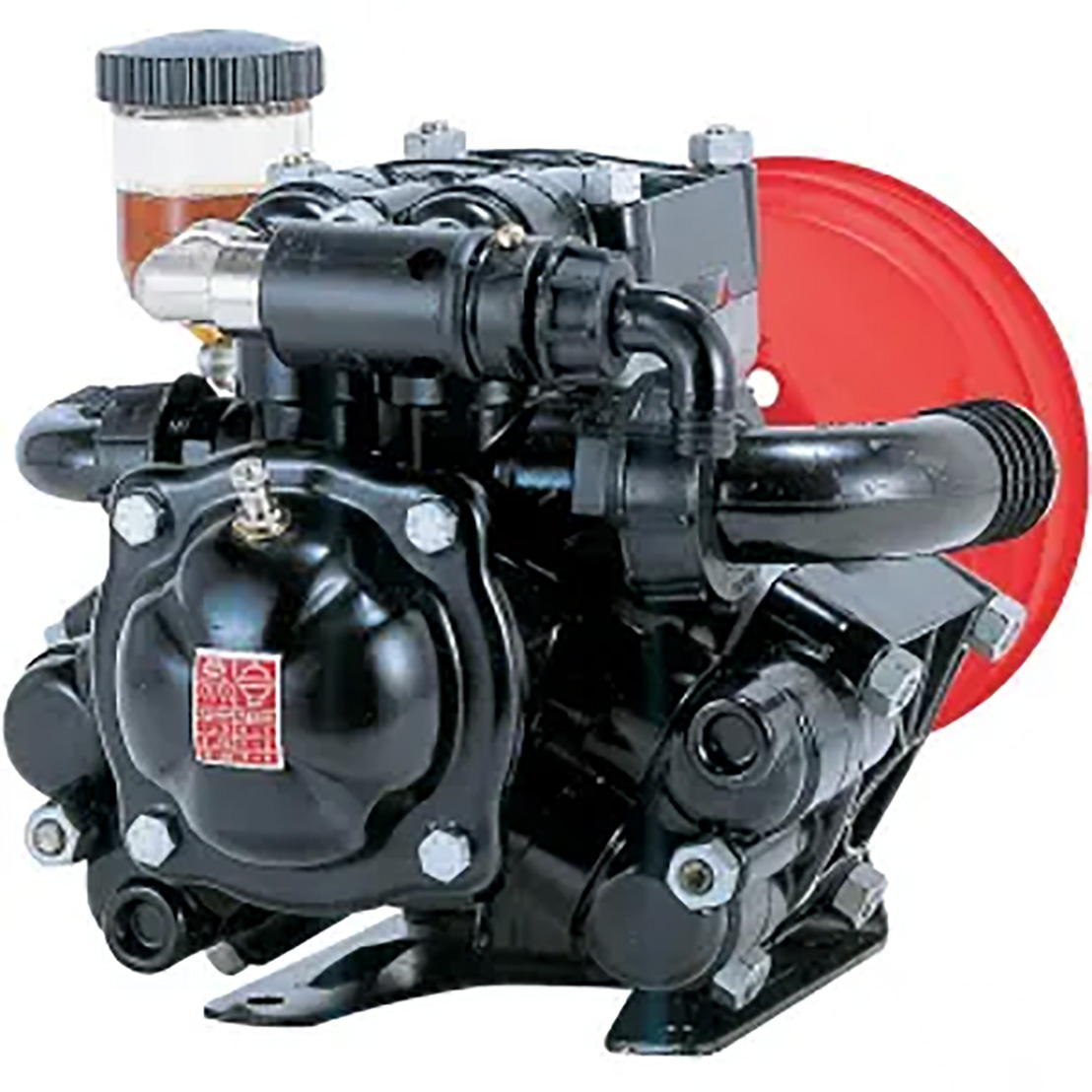

AR Piston diaphragm pump AR 115BP

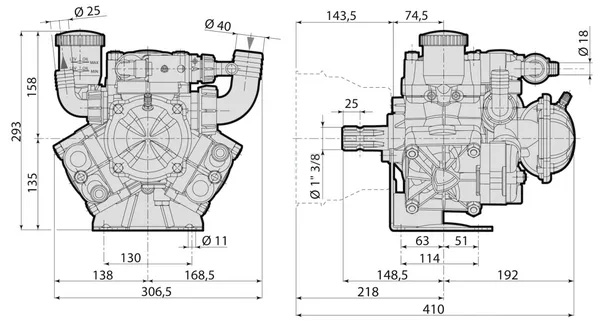

AR Piston diaphragm pump AR 115BP drawing
Preview: AR Piston diaphragm pump AR 115BP
Preview: AR Piston diaphragm pump AR 115BP drawing
Piston diaphragm pump AR115BP C Blueflex - 32014
AR Piston diaphragm pump AR 115BP
AR Piston diaphragm pump AR 115BP drawing
Mobile Preview: AR Piston diaphragm pump AR 115BP
Mobile Preview: AR Piston diaphragm pump AR 115BP drawing

Piston diaphragm pump AR115BP C Blueflex - 32014

Product No.:
AG16262
Shipping time:
5-8 days, if in stock 5-8 days, if in stock (abroad may vary)
Weight:
13 kg per piece
Our standard price 1.252,45 EUR
Your price 1.127,21 EUR
Shop discount 10%

incl. 19% tax excl. Shipping costs

Add to wish list
Ask about product
Description

Annovi Reverberi piston diaphragm pump AR 115 BP/C with Blueflex equipment

Fields of application:
Semi-hydraulic low-pressure diaphragm pumps for weed control and liquid fertilization

Features:
  • All parts that come into contact with the liquid are plastic-coated
  • The oil bath crank gear is equipped with a control tank
  • Screws with galvanic protective treatment made of Dacromet

Technical information:
  • Pump with a cardan shaft 1⅜" 6 parts

Scope of delivery:
  • Piston diaphragm pump with safety valve and air chamber
  • The pumps are supplied with rubber diaphragms as standard

Technical data of the pump:
  • Drive shaft 1⅜"
  • Height 293 mm x width 306 mm x length 340 mm
  • 5.57 HP
  • max. flow rate 108 l/min
  • max. pressure 20 bar
  • max. rotation 550 rpm
  • max. temp. 60 °C
  • Material piston diaphragm: BlueFlex
  • Ø connection suction side 40 mm
  • Ø connection pressure side 25 mm
  • Power 4.1 kW
  • Shaft type 1⅜" (6)
  • Weight 13 kg
