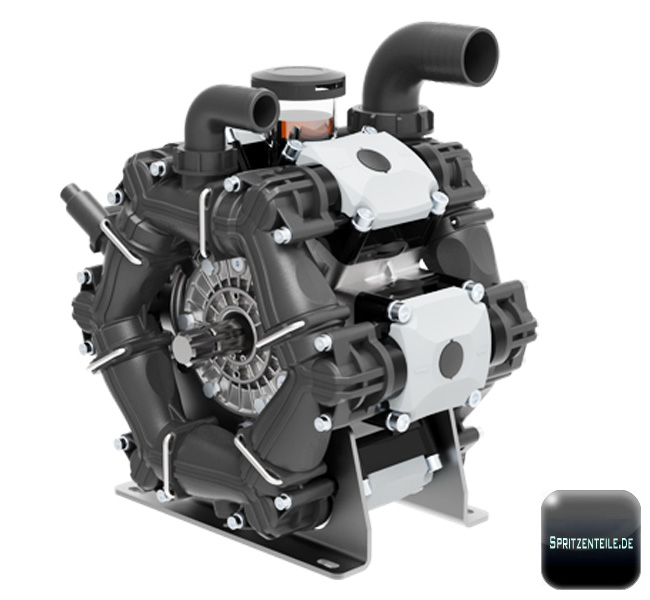

Comet Diaphragm pump BPS 300 up to 20 bar - 290 PSI

The 6 Membranen line boasts a set of excellent features: extremely compact size, easy maintenance, long lasting and resistance to the most heavy working conditions whilst always maintaining high performance in terms of flow rate, priming capacity, power absorption and low noise. The BPS 300 pump with a maximum pressure of 20  bar / 290 PSI and flow rates of 295 l / min is designed to equip the most modern and high performance machines with boom sprayers.

Configuration:

• 6 diaphragms in NBR and Desmopan® (Viton available on request)
• Parts in contact with spray liquid: plastic coated aluminium and poliamide
• Standard: pressure accumulator
• On request: safety valve and PTO protection

Construction pump

1. PUMPING UNIT
› Plastic coated die-cast Aluminium Heads with high mechanical and chemical resistance
› Large diameter diaphragms (125 mm) in NBR, Viton®, Desmopan®
› Reduced-stroke pistons with ring

2. DELIVERY PORTS
fly nut / clip coupling
› Ø 25 (standard on BPS 160, BPS 200, BPS 260)
› Ø 30, Ø 35 (available on all models)
› Ø 40 (standard on BPS 300, available on BPS 160, BPS 200, BPS 260)

4. SUCTION PORTS
fly nut / clip coupling
› Ø 40 (standard on BPS 160)
› Ø 50 (standard on BPS 200 and BPS 260)
› Ø 60 (standard on BPS 300, available on BPS 260)

5. SUCTION AND DELIVERY VALVES
› High fluid-dynamic yield
› Same on the whole series (BPS 160, BPS 200, BPS 260, BPS 300)

6. SUCTION AND DELIVERY MANIFOLDS
› Made in reinforced Technopolymer with high mechanical and chemical resistance
› Couplings for auxiliary ports

7. FEET
› Fixed directly to the pump Crankcase
› Very sturdy and strong

8. DRAIN PLUGS
› For water discharging (antifreeze)

Spare parts select here and spare part list for download.
