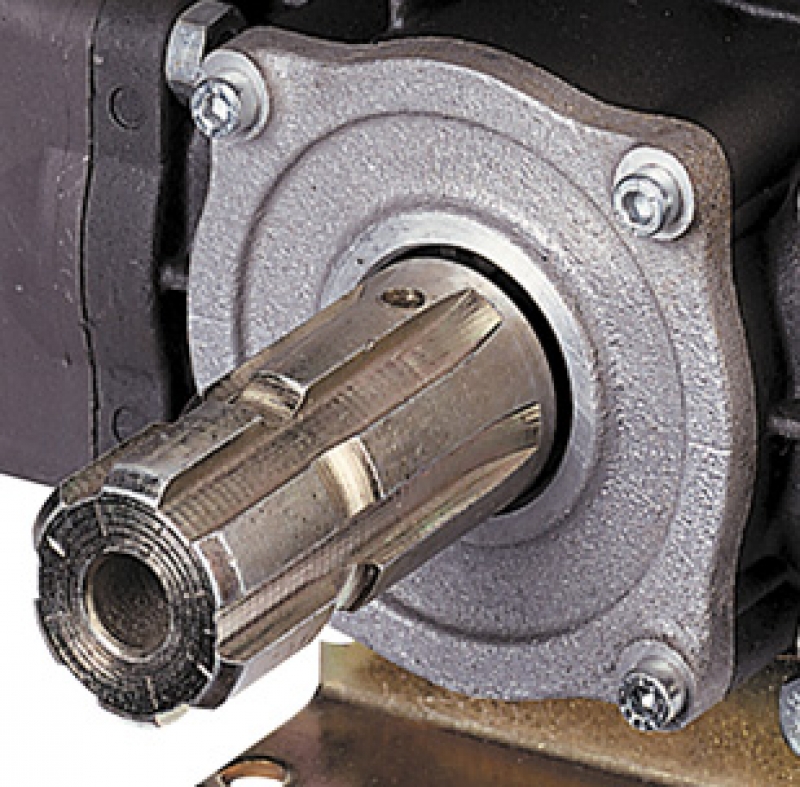

Sample quick coupling an flange for hydraulic motor
Comet pump BP 125 K connection possibility
Preview: Comet Piston diaphragm pump BP 125 K - 20 bar
Preview: Comet Piston diaphragm pump BP 125 K - 20 bar
Preview: Comet Piston diaphragm pump BP 125 K / 20 bar
Preview: Comet Piston diaphragm pump BP 125 K - 20 bar
Preview: Comet Piston diaphragm pump BP 125 K - 20 bar
Preview: Sample quick coupling an flange for hydraulic motor
Preview: Comet pump BP 125 K connection possibility
Comet Piston diaphragm pump BP 125 K - 20 bar
Comet Piston diaphragm pump BP 125 K - 20 bar
Comet Piston diaphragm pump BP 125 K - 20 bar
Comet Piston diaphragm pump BP 125 K / 20 bar
Comet Piston diaphragm pump BP 125 K - 20 bar
Comet Piston diaphragm pump BP 125 K - 20 bar
Sample quick coupling an flange for hydraulic motor
Comet pump BP 125 K connection possibility
Mobile Preview: Comet Piston diaphragm pump BP 125 K - 20 bar
Mobile Preview: Comet Piston diaphragm pump BP 125 K - 20 bar
Mobile Preview: Comet Piston diaphragm pump BP 125 K / 20 bar
Mobile Preview: Comet Piston diaphragm pump BP 125 K - 20 bar
Mobile Preview: Comet Piston diaphragm pump BP 125 K - 20 bar
Mobile Preview: Sample quick coupling an flange for hydraulic motor
Mobile Preview: Comet pump BP 125 K connection possibility

Comet Piston diaphragm pump BP 125 K - 20 bar

Product No.:
CO6100000100
Shipping time:
if in stock 5-8 days if in stock 5-8 days (abroad may vary)
Weight:
15 kg per piece
Our standard price 868,00 EUR
Your price 651,00 EUR
Shop discount 25%

incl. 19% tax excl. Shipping costs

Add to wish list
Ask about product
Description
Piston diaphragm pump, manufacturer Comet, 3 cylinder, effiency 125 l/min, max. pressure 20 bar, delivery without pressurestat, with pump socket. Optional with saftey valve.

Connections:
  • Suction tail 90° ø 40 mm
  • Delivery tail 90° ø 20 mm
Technical data, see table – spare parts and spare part list for download. Please select drive.

Recommendation for suitable power units at hydraulic drive:
  • Danfoss
    • Typ: OMP80 - OMPA50 - OMR50 - OMRA50
  • Eaten Char-Lynn
    • Typ:  H-Plus 60 - S-Plus 60 - T-Plus 60 - Serie 2000 80
