Comet Piston diaphragm pump BP 125 K - 20 bar

Product No.:
CO6100000300|CO2416027200
Shipping time:
appr. 5 weeks appr. 5 weeks (abroad may vary)
Weight:
17.5 kg per piece
Our standard price 949,66 EUR
Your price 712,25 EUR
Shop discount 25%

incl. 19% tax excl. Shipping costs

Add to wish list
Ask about product
Description

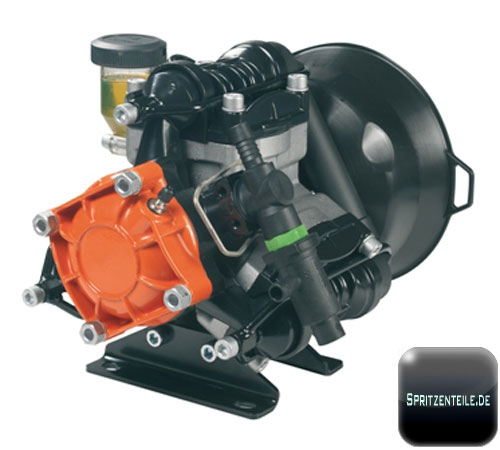

Piston diaphragm pump, manufacturer Comet, 3 cylinder, effiency 125 l/min, max. pressure 20 bar, delivery without pressurestat, with pump socket. Optional with saftey valve.

Connections:
  • Suction tail 90° ø 40 mm
  • Delivery tail 90° ø 20 mm
Technical data, see table – spare parts and spare part list for download. Please select drive.

Recommendation for suitable power units at hydraulic drive:
  • Danfoss
    • Typ: OMP80 - OMPA50 - OMR50 - OMRA50
  • Eaten Char-Lynn
    • Typ:  H-Plus 60 - S-Plus 60 - T-Plus 60 - Serie 2000 80
Product-Liability

Headquarters

Comet Spa
Via G. Dorso, 4
42124 Reggio Emilia Italy

Phone: +39 0522.386.111 – Fax: +39 0522.386.286
mail: info@comet-spa.com | website: www.comet-spa.com

SALES DEPARTMENT

export@comet-spa.com

PURCHASING DEPARTMENT

purchasingdept@comet-spa.com

Codice Fiscale e Partita IVA IT01392660351

Documents
Data sheet BP 125 K  (1.28 MB) :

Spare-parts list BP 125 K  (869.77 KB) :
