RAU piston diaphragm pump 70 liters 37239
RAU piston diaphragm pump 70 liters - RG00082371
RAU piston diaphragm pump 70 liters 37239

RAU piston diaphragm pump 70 liters - RG00082371

Product No.:
RA82371
Shipping time:
if in stock 5-8 days if in stock 5-8 days (abroad may vary)
Weight:
9 kg per piece
Our standard price 1.398,05 EUR
Your price 1.258,25 EUR
Shop discount 10%

incl. 19% tax excl. Shipping costs

Add to wish list
Ask about product
Description
Sale – pump no longer in production – spare parts still available.

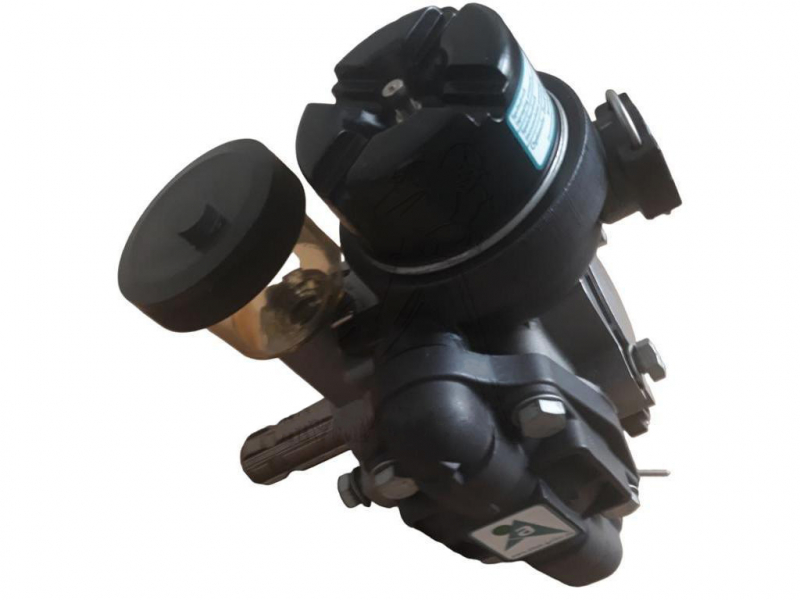

Piston pump P70 with oil fillin RG00082371 has a capacity of 70 l / min at a pressure of 5 bar. The operating pressure is max. 15 bar. A pressure of max. 20 bar can also be used at short notice. Nominal speed 540 U / min at a speed range between 450 to 600 U / min. The pintle shaft is in accordance with DIN 9611 / ISO 500

Features and performance data:
  • Linear characteristic
  • Integrated pressure memory
  • Dry-proof (liquid)
  • Self-priming up to 4 meters deep
  • Liquid Fertilizer-resistant (AHL)
  • Liter capacity at 5 bar: 70 l / min
  • Standard working diaphragm: 2 x NBR
  • Pressure storage membrane: 1 x NBR
  • Inlet ø Inlet: AS40
  • Outlet ø Pressure side: AS30
  • Lubrication: oil bath
  • Weight: 8.7 kg
  • Material: cast aluminum, partial anodized, stainless steel: 1.4305, NBR seals, POM
Product-Liability

Rau Serta Hydraulik GmbH
Heimenwiesen 60
73230 Kirchheim/Teck - Ötlingen
Deutschland
Tel. 07021-73770
Fax 07021-737720

Sitz und Registergericht Kirchheim/Teck HRB Nr. 231038
Umsatzsteuer-ID-Nummer DE 145912183
Geschäftsführer: Sophie RENNER
Documents
Spare part list Rau piston diaphragm pump P70 RG00082371  (909.86 KB)
