Designed and built for heavy duty service. Stem extends through extension to valve seat located directly behind orifice disc for drip free shutoff and instant operating response. Convenient trigger-lock for continuous spraying.

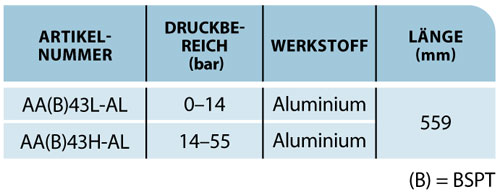

Number AA43L for operating pressures up to 14 bar (200 psi)
Number AA43H for operating pressures up to 55 bar (800 psi)
Hardened Stainless Steel Type D Orifice Discs, five sizes available
Trigger handle control: ALL MODELS have ½" NPT or BSPT (F) inlet connections
Exposed packing nut for easy adjustment of packing
Available in aluminum only.
Length 559 mm
