Braglia High-pressure filter in brass M145 for use on mist blowers and sprayers. Best suited to complete M200 series valve assemblies. Line pressure filters with patented screen self cleaning system. The maximum performance of the self cleaning system is obtained if used in conjunction with M401 series manual pressure relief valve or M202 pressure regulators. Can be used alone (fits M200 bracket kit - 200.805.13) on modular assembly with M200 solenoid valves and parts. Double reinforced stainless steel screens.
Max. operating pressure 50 bar (725 psi)
Max flow rate 150 l/min with 1 bar pressure drop (39.5 USGal/min with 14.5 psi pressure drop)

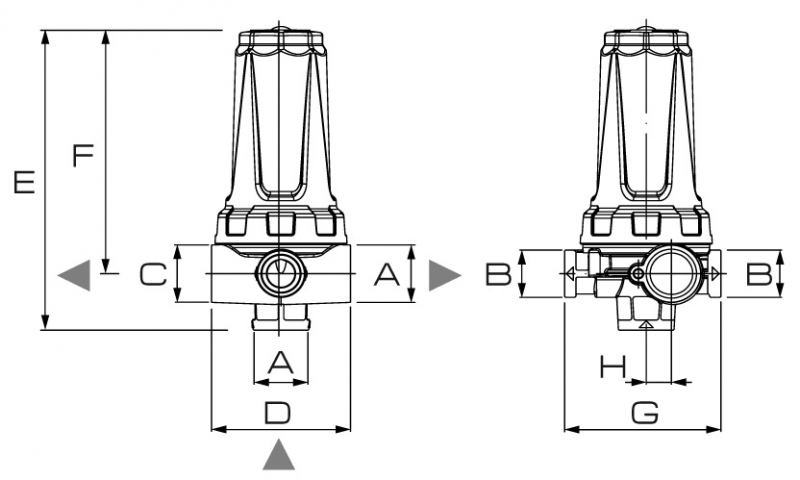

1 inlet ¾ "IG – 2 outlet ¾" IG for self-cleaning or cleaning valve – 3 filtered outlet ½ "IG – 5 filtered outlet ½" IG for pressure gauge connection
Materials brass - stainless steel - Buna N
Standard with screen 80MA. Plugs and connections not included
