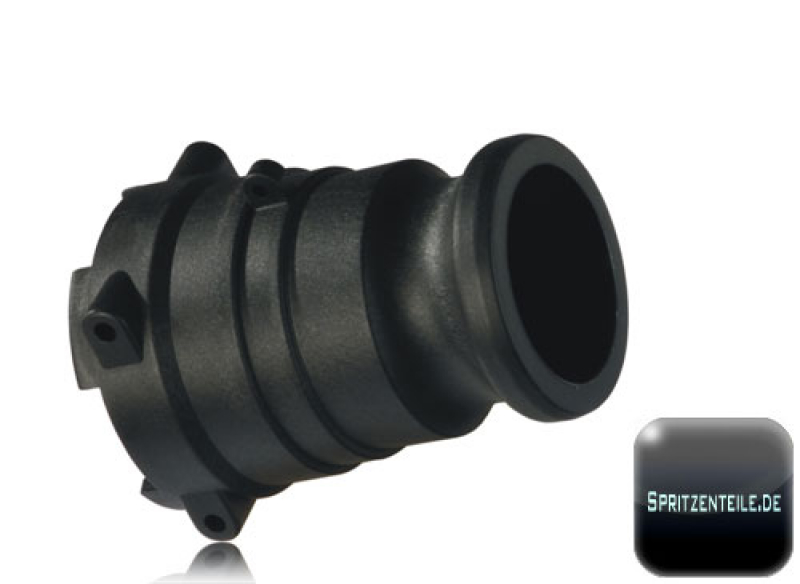

Camlok adapter from the manufacturer Arag with T-fork-coupling and female Camlok part made of high-strength Nylon. Max. working pressure 20 bar. The delivery takes place with fork.
With this table you can match the "T" to the thread sizes.
| TYPE |
Matching thread sizes |
Dimension ‘T’ in mm as per the drawing |
| T1 |
¾" |
approx. 17 mm |
| T 3 |
¾" |
approx. 30 mm |
| T4 |
1" |
approx. 35.8 mm |
| T5 |
1¼" |
approx. 42.3 mm |
| T6 |
1½" |
approx. 50.3 mm |
| T7 |
2" |
approx. 60 mm |
| T9 |
3" |
approx. 89 mm |
