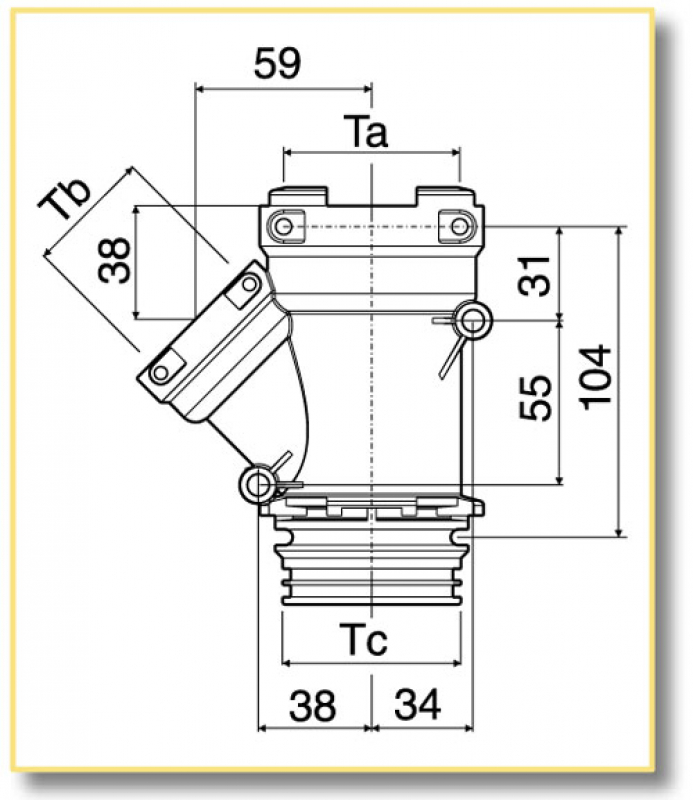

Manifold 3-ways with T7-T5-T7 connection, from the manufacturer Arag made of high-strength Nylon. Max. working pressure is 20 bar. The delivery takes place with two forks and two O-rings.
With this table you can match the "T" to the thread sizes.
Type
Matching thread sizes
ø sizes in mm internal / external
T1
3/8"
about 19 mm / 26 mm
T3
3/4"
about 31 mm / 40 mm
T4
1"
about 38 mm / 46 mm
T5
1 1/4"
about 46 mm / 56 mm
T6
1 1/2"
about 54 mm / 64 mm
T7
2"
about 64 mm / 74 mm
T9
3"
about 95 mm / 105 mm
Product-Liability
Arag S.r.l. con socio unico
Via A.Palladio 5/A
42048 Rubiera - Reggio nell'Emilia - ITALY
