Bayonet combi-cap for air-injector nozzles and flat fan nozzles
Features
Enables the advantages of drift-reducing air-injector nozzles to be combined with the effect of the double flat jet for improved spray coverage
Combi-cap suitable for nozzles with widths across flats of 8 and 10, e.g. IDK, IDKN, ES, LU and ID, IDN
TWIN flat spray jets in direction of travel, 30° to the front and 30° to the rear
2-part TwinSprayCap, easy to disassemble thanks to plug-fit bracket system for assembly and changing the nozzles
Automatic alignment and offset of the nozzles for optimum lateral distribution
Suitable for
Lechler nozzle holder system MULTIJET (blue connec- tion)

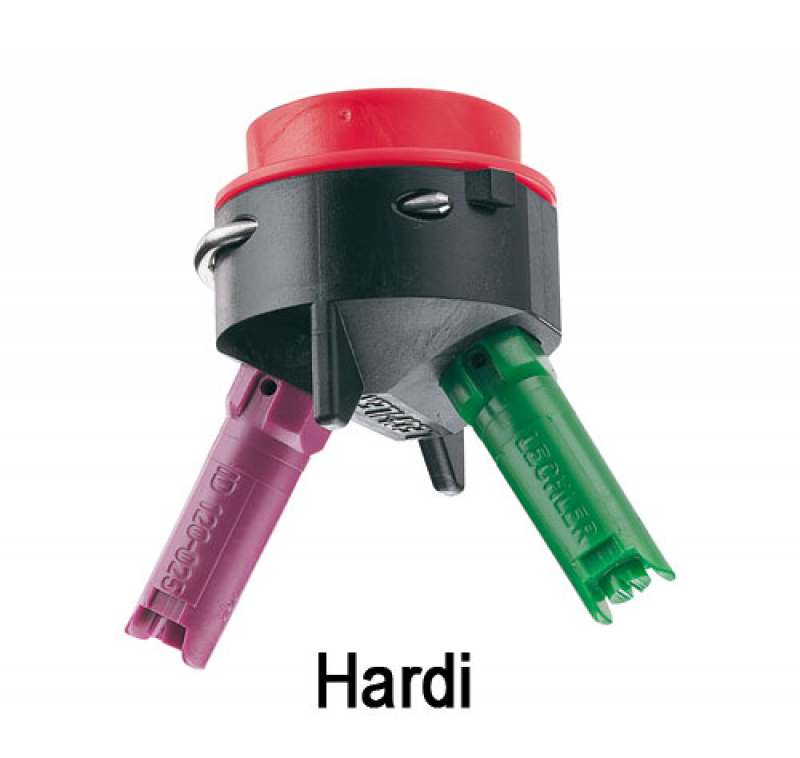

Hardi nozzle holder system (red connection)
Intermediate and extension adapto
Range of application
Particularly contact (semi)-systemic pesticides
Ears treatment
Potato blight control and desiccation
Vegetable-growing
Grass control
Band spraying with ES band spray nozzles
All herbicid applications in particular on low tillage
Recommendation for installations:
Wet gasket with water before mounting on nozzle holder.
Note:
Select the nozzle size using the l/ha spraying tables - the correct rating corresponds to the determined nozzle size divided by two, e.g. two times -02 corresponds to the application rate of -04 or alternatively one time -015 and one time -025 corresponds as well to -04.
Without nozzles, with seals. Please choose the right nozzle brand.
